Englanders Cub Kit Camp Stoves

Englander



Description

Kit Includes: "Cub" Campstove, Attachable Pipe Collar (AC-CSPC), Four 2' Pipe Sections (AC-CSPIPEKIT), and Attachable Shelf (AC-CSSHELFL).

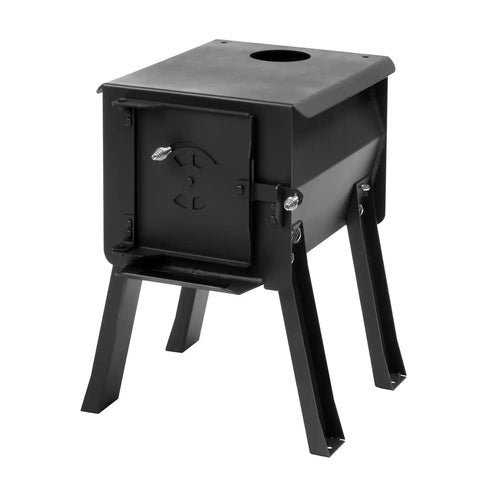

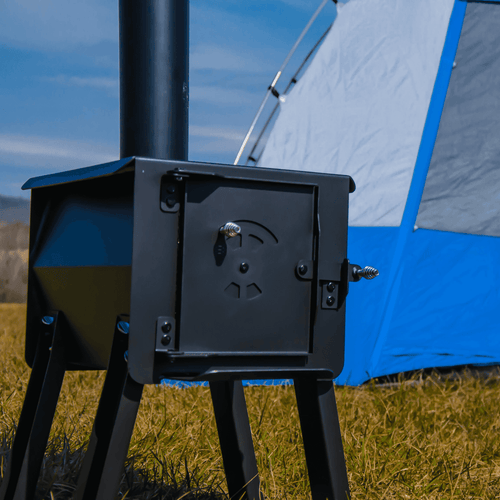

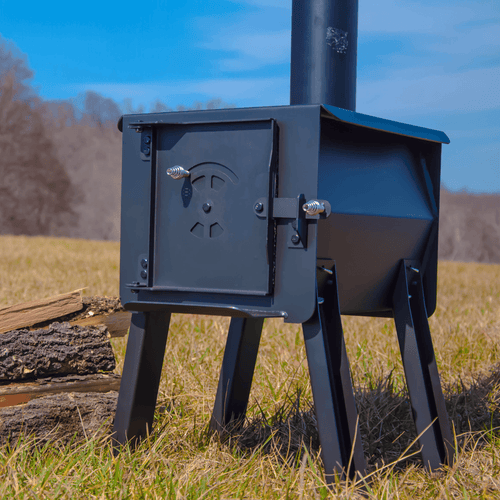

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove's top edges are bent to double as handy carrying handles.

The 4” diameter pipe outlet is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 600° F. The Cub is also large enough to heat wall tents up to 12' x 14'.

NOTE: NOT for use in homes. Only for use outdoors, in non-permanent structures designed for wood stoves, or in tents made for stove usage (i.e. a canvas wall tent with a stove jack).

NOTE: Sorry, cannot sell to or ship camp stoves to Quebec.

  • HexaTech™ Hexagonal firebox design provides long burn times and even heat distribution

  • Circular door damper and in-door air redirect for easy start-ups and precise temperature control

  • High temp. fiberglass door gasket is a unique feature that gives more efficient, longer-lasting burns

  • Included spring handles keep the door latch and damper controls cool to the touch

Bilingual installation & user manual



Specifications

Fuel type Dry cordwood
Overall firebox volume 1 ft³
Mobile home approved No
Overall dimension (Width) 14 1/2"
Overall dimension (Height) 21 3/4"
Overall dimension (Depth) 19 1/2"
Flue outlet diameter 4"
Distance-center of the flue outlet to back unit 3 1/2"
Distance-center of the flue outlet to side unit 7"
Recommended chimney diameter 4"
Door type Steel
Door opening size (Width) 6 3/4"
Door opening size (Height) 7 1/4"
Steel thickness-body 12 Ga
Steel thickness-top 12 Ga
Firebox size (Width) 12"
Firebox size (Height) 11"
Firebox size (Depth) 15 1/2"
Maximum log length 14 1/2"
Log positioning Loading over depth
Canadian Standard (safety) ULC S627 ULC S627 ULC S627
Warranty Limited 1 year to carbon steel and welds of firebox
Shipping weight 66 lb (30 kg)


*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
