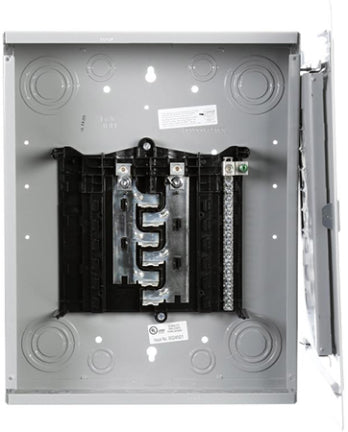

INDOOR 12-24 SPACE PANEL 120 AMP

Single phase, 120/240-Volt, 125 Amp main lug load center with 12-spaces/24-circuits. Aluminum bus. Ground bar field installed. Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility. Single side inboard neutral. Invertible for bottom feed application. Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws. Pre-positioned bond screw eliminated bond straps/screw assemblies and reduce the risk of losing components in the field. Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors. Rigid, sturdy base pan provides ruggedness required for harsh applications. NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist.
